Multi-parameter bearing bore diameter & outside diameter measuring instrument
Multi-parameter bearing bore diameter & outside diameter measuring instrument

Multi-parameter bearing bore diameter & outside diameter measuring instrument

Introduce
Comment

Multi-parameter bearing bore diameter & outside diameter measuring instrument

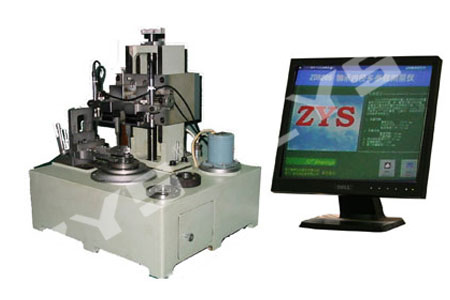

  • The instrument for bearing diameter measurements,including bearing outside diameter measurement and bearing bore measurement,can measure all kinds of bearing bore and outside diameter.


    Feature
    • In the system, coreless fixtures are used to make the workpiece rotating and centering, absolute fix, easy installation.
    • When measuring, workpiece rotates at an even speed, the system captures data of several points in the single plane.
    • The measuring device can be moved vertically and measure on the planes of different heights according to your requirement. The number of the plane you want to measure could be preset.
    • Computer-controlled, automatic measurement, automatic data processing, data display, the results can be printed and saved.
    • The precision of our instrument is higher than general bore, outside diameter measuring instrument. It is applicable to measuring room of bearing factory, inspection station, bearing quality supervision and inspection dept.

    Technical Specification

    Model ZD9205Q ZD9113Q ZD9210Q ZD9120Q
    Measuring range(mm) d: φ10~φ50 D: φ26~φ130 d: φ50~φ100 D: φ120~φ200
    Measuring parameter △ds, △dmp, Vdp, Vdmp, △Ds, △Dmp, VDp, VDmp
    Working height ≤40mm
    Indication error ±0.5µm ±1µm
    Indication repeatability ±0.5µm ±1µm
    Minimum plane spacing 1/8mm
    Number of planes 1~240
    Efficiency Max.3 pieces/min
