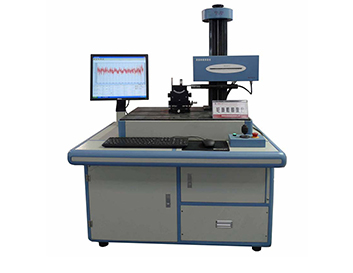

XM200 surface profile measuring instrument
XM200 surface profile measuring instrument

XM200 surface profile measuring instrument

Introduce
Comment

XM200 surface profile measuring instrument

      •

        Features
        • X direction used high-precision guide rail for line to move benchmarks, the move distance of guide rail is measured by grating technology.
        • Z direction column also used high-precision slide rail and encoders for measurement, the ball screw system is driven by the motor.
        • Roughness and profile measurements. With workbench it can measure three-dimensional surface profile, the system can be used standalone, flexible and convenient.
        • Measuring software is WINDOWS platform, using the latest domestic standard definition, complete mathematical model.
        • A variety of adjustable workbenches, such as rotary workbench, V-type platforms etc. Users can freely choose according to need.
        • More measuring parameters such as: linearity, curvature deviation, two grooves bearing various parameters, parallel deviation, height etc. It can also measure surface profile of the mechanical, roughness in strict accordance with domestic standards.
        • High Measuring precision, inductance sensor resolution up to 0.01µm , X direction  grating resolution is 0.5 µm, Z direction with encoder, it can measure large scale high-precision displacement.
        • More control position, it can not only measure traditional small displacement in Z direction and displacement in X direction also the large displacement in Z direction. With control table in Y direction, it can measure three-dimensional surface morphology of parts.
        • Use of computer controlling, it can manually or do measurement, it can automatically eliminate installation errors, automatically change range, directly display the shape and parameters, it can print output and has standard database for storing data.

        Technical Specification

        Part name Content
        X direction move Guide rail type Move distance Linear precision Measuring method High-precision sliding rail 200mm 0.05µm/100mm Grating count
        Contour shape measuring Sensor Type Measuring range Display resolution Relative error Inductance sensor ±0.5mm, ±4mm 0.001µm 0.1%~0.8%
        Roughness measuring Measuring parameters Measuring range Display resolution Relative error Ra, Rz, Ry, S, Sm, tp Ra 0.01~10µm 0.001µm 3%
        Z direction move(Column) Guide rail Type Move distance Driving Mode Measuring method High-precision sliding rail 400mm Ball Screw Encoder
        Accessory (Select) Three-dimensional adjust workbench Special workbench for bearing rotary workbench Level, obliquity, swinging angle adjustment Bearing installation Workpiece angle adjustment
        y direction move (Purchase) Guide rail type Move distance Linear precision Measuring method Rolling rail 100mm 2µm/100mm Grating or encoder
        Measuring software Software platform Function WINDOWS Use of computer controlling, it can manually or do measurement, it can automatically eliminate installation errors, automatically change range, directly display the shape and parameters, it can print output and has standard database for storing data.
