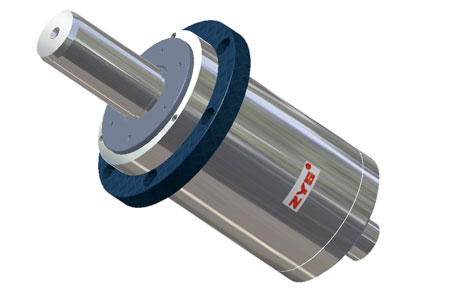

Dense-ball spindle

• • • • • • • •

                ZYS dense ball spindles are used in measuring instruments and processing equipments which can bear high loads and bending moment with low speed. We can design and manufacture the fitting dimension of working end according to customers’ requirements.





                MD series Spindle type	MD series Spindle type	dimensions		Stand assembly dimensions			Axial input end diameter	Axial Output end diameter		Axial input end diameter(μm)
                		D	L	D1	D2	d3	d	d1	d2
                MD50T	MD50U	50	70	80	65	4.5	8	8	8	≤0.5
                MD60T	MD60U	60	80	90	75	4.5	8	8	8	≤0.5
                MD70T	MD70U	70	95	110	90	5.5	10	10	8	≤0.5
                MD80T	MD80U	80	110	120	100	5.5	10	10	8	≤0.5
                MD90T	MD90U	90	120	130	110	5.5	20	20	16	≤0.5
                MD100T	MD100U	100	135	140	120	5.5	20	20	16	≤0.5
                MD120T	MD120U	120	160	160	140	5.5	20	20	16	≤1
                MD140T	MD140U	140	190	180	160	6.5	25	25	20	≤1
                MD160T	MD160U	160	220	200	180	6.5	25	25	20	≤1
                MD180T	MD180U	180	240	240	210	8.5	30	30	20	≤1.5
                MD200T	MD200U	200	270	260	230	8.5	30	30	20	≤1.5
