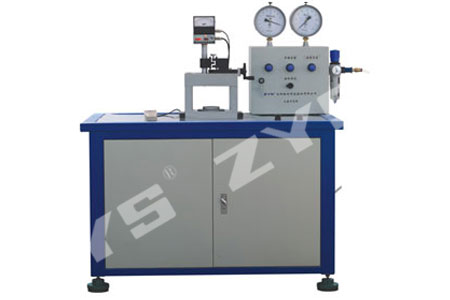

T69 Series bearing end-face convexity measuring instrument
T69 Series bearing end-face convexity measuring instrument

T69 Series bearing end-face convexity measuring instrument

Introduce
Comment

T69 Series bearing end-face convexity measuring instrument


  • ZYS bearing end-face convexity measuring instrument can do offset measurement for angular contact bearings used in conjunction group.

    Features
    • They work under rated pre-load. Reliable data. • The load could be pre-set according to your need. Convenient use. • Pneumatic loading, smoothly, reliably, no percussion, easy operation. • The system uses air bearing or high-precision rolling bearing for spindle and realize the dynamic measurement. The results can be printed and saved. • The whole system has reasonable design, advanced construction, high rigidity and accurate data. It is applicable to selecting matched bearings for bearing enterprise and matching host enterprise. At the same time, it also can be used as a reliable research and analysis tool in specialized laboratory. More important, it is the essential technical support of universal matching bearing matching bearing manufactory.

    Technical Specification

    Model T6912 T6924 T6928
    Measuring range D:φ26~φ120mm D:φ90~φ240mm D:φ80~φ280mm
    Measuring capacity ±200µm ±200µm ±200µm
    Indication error ±1µm ±1.5µm ±2µm
    Indication repeatability ±1µm ±1.5µm ±2µm
    Measuring Load 4~400N 20~2000N 150~15000N
    Measurement Selection Maximum, Minimum, Random value, Mean value
